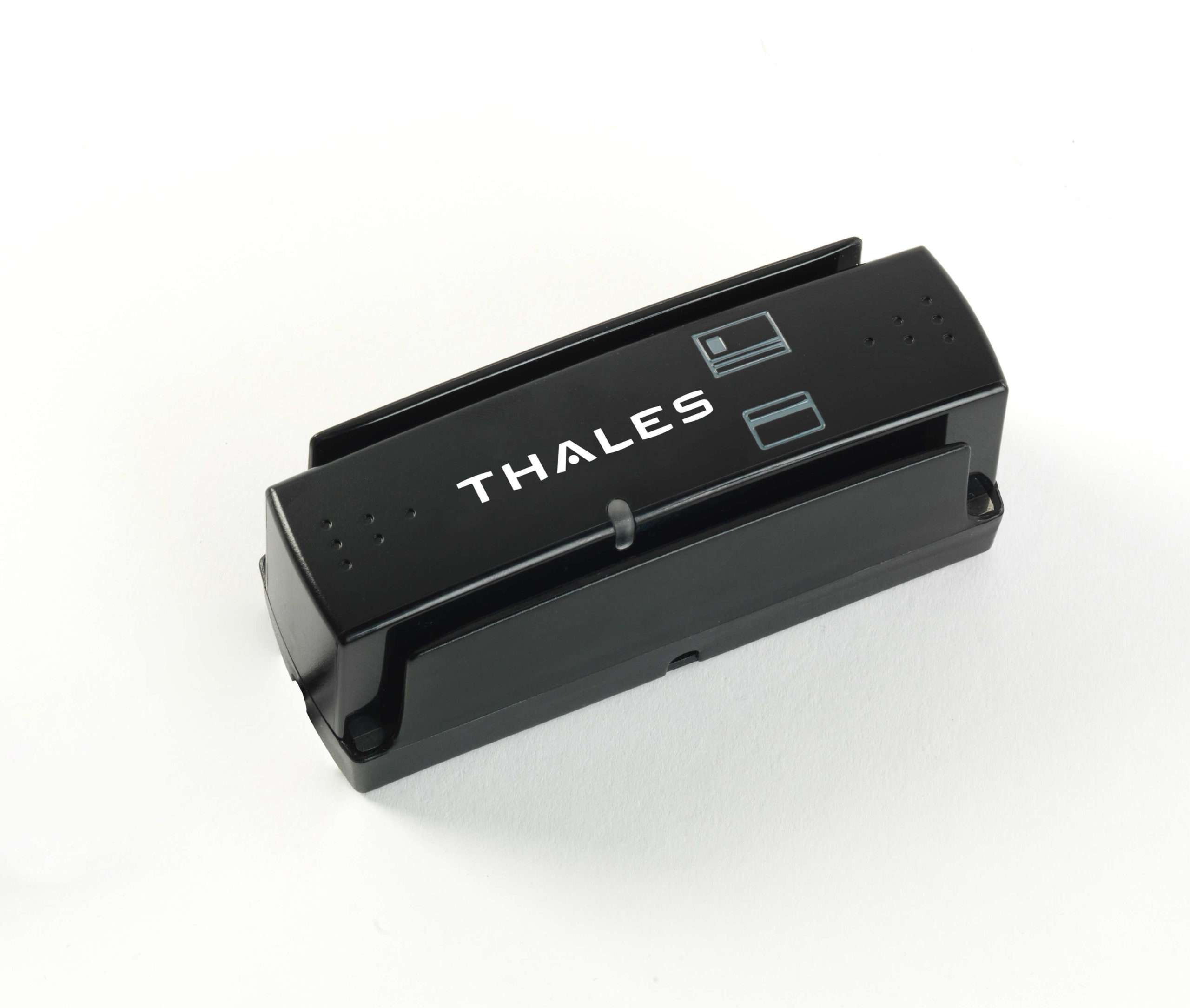

MRZ and MSR Swipe Reader CR100M – 200cm cable, desk mount

In stock (can be backordered)


The Thales Gemalto CR100M MRZ and magnetic stripe Swipe Reader is an efficient and easy-to-use compact data-capture reader.

SKU: A2592101 Categories: ,





Small footprint MRZ and MSR Swipe Reader

The Thales Gemalto MRZ and MSR Swipe Reader CR100M is an efficient and easy-to-use reader with a small footprint.

The MRZ and MSR Swipe Reader CR100M offers:

  • The ability to read codeline data from passports, IDs, and other Machine Readable Travel Documents (MRTDs)
  • The ability to read three-track magnetic cards

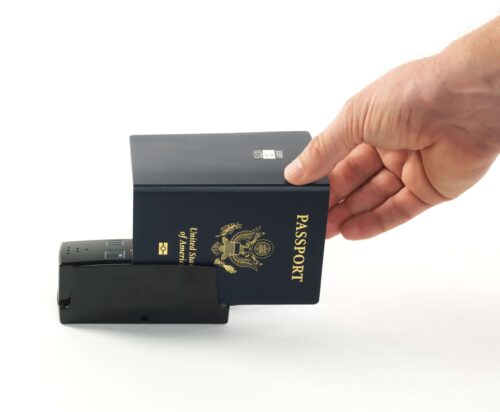

  • The simple hand-swipe operation, requiring minimal operator training
  • Fast, accurate data capture
  • A small footprint; can be integrated into small bank counter or cash desk environments

It is designed and used in Banks & Financial Institutions, Border Management, Hospitals, Care Facilities & Pharmacies, Hotels & Casinos, Retail Stores, Schools, and Universities.

Additional information

Document Type

, ,

Form Factor

Reader Technology


Light Source




MRZ and MSR Swipe Reader CR100M – 200cm cable

Non-Standard Features:

  • 200cm cable – Single interface cable

Standard Features:

  • MSR reading of frequent flyers, driving licenses, and similar documents
  • USB2.0 output and USB powered (no power supply), a single interface cable (2m or 15cm options at the time of purchase)
  • B900 infrared illumination
  • Bi-directional swiping
  • Desktop mount for stable, non-slip swiping (optional, user installable)
  • Can be attached to an LCD or other device/mounting using 3M™ Dual Lock™ fasteners
  • VCOMM interface for Multi-Function Document Reader compatibility (other interfaces available, contact your local Gemalto sales office)
  • Windows® XP SP3 and Windows Vista® compatible, Windows® 7 tested
  • Cable exit points are user changeable
  • Customers can design bespoke brackets, using dual screw fixing Reading Capability
  • ICAO compliant documents in near-infrared (IR) 875nm per
  • ICAO 9303 specification Parts 1-4
  • Near ICAO compliant travel documents such as French ID cards
    For information on reading other document types (e.g., bankers cheques) contact IDV Pacific
    Three track magnetic swipe card conforming to ISO 7811/2-5 including AAMVA
