Thales Gemalto IDV Scanners

‘gold standard’ identity document validation

Request Details

Authorised Thales Channel Partner

for advanced ID scanners

These scanners read ID documents with white light, infrared, ultraviolet and read the chip in e-Passports and other ICAO documents

Advanced functions for bespoke deployment can be implemented using the Thales Document Reader Software Development Kit (SDK). IDV Pacific offers configuration advice and technical and programming assistance with the SDK

Thales ID Document Readers verify both the electronic and physical security features of identity documents

Thales Document Reader series

AT10Ki

Cloud-Ready Intelligent Document Reader

Industry-first network reader that enables intuitive, high-speed authentication of identity and travel documents

Read More AT10K series

AT9000

High-End Full Page ID Document Scanner

The AT9000 is a general-purpose scanner that reads and authenticates multiple document types quickly, easily, and accurately

Read More AT9000 Mk2

KR9000

OEM Kiosk Document Reader

Ideal for self-service kiosks providing quick, accurate data and image capture of travel documents and barcoded boarding passes

Read More KR9000

QS2000

Entry Level Full Page Document Reader

** Due December**

The QS2000 is a robust full-page document reader designed for fast data entry from travel documents and ID documents

Read More QS2000

CR5400i

Double-sided Intelligent ID Card Reader

The CR5400i is an easy to use, on-demand device that provides flexible deployment options with direct SaaS connectivity

Read More CR5400 series

CR100M

Small Footprint MRZ and MSR Swipe Reader

The Thales Gemalto CR100M MRZ and magnetic stripe Swipe Reader is an efficient and easy-to-use compact data-capture reader

Read More CR100M

Document reader and ID verification solutions

IDV Pacific offers a range of Thales identification verification and authentication solutions that help prevent document and identity fraud

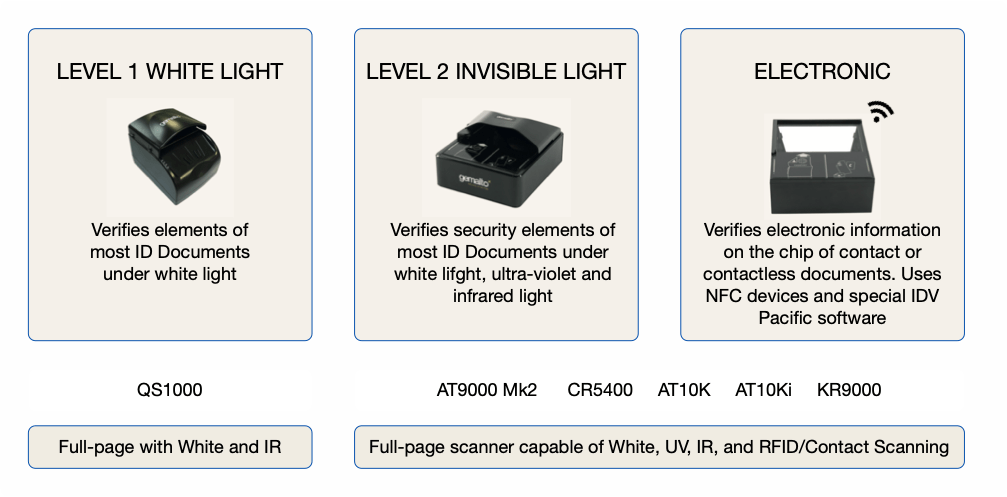

Feature

AT10KiAT10KAT9000KR9000QS2000QS1000CR5400iCR5400CR100MCR100
Level 1 White Light
Level 2 Invisible Light (IR,UV)

IR Only

IR Only

IR Only

Anti Glare Technology
Electronic Chip Read (RFID)

Option

Option

Option

Option

Option

Option

USB Connect
WiFi and LAN Connect
Reads MRZ

Option

Option

Magnetic Stripe Reader

Option

Option

OCR Data Capture

Option

Option

1D, 2D Barcode Reader
IDV Hub Manager compatible
Build-In (OEM Form Factor) available
SDK Available

For configuration advice and technical assistance with the SDKs request details below

Authorised Thales Channel Partner for Australia and New Zealand

IDV Pacific sell document scanners and biometric readers from global leader Thales Gemalto

Why buy from IDV Pacific:

  • Expertise – We know more about Thales Scanners than anyone else in A/NZ and as beta testers, we have a direct connection to Thales technical experts
  • Satisfied Customers – We supply major vendors in hospitality, financial, automotive, legal, security, and Australian Government sectors
  • Availability  – we hold stock in Sydney and Melbourne for immediate delivery
  • Warranty – We offer Extended Warranty plans and provide for warranty returns. We also offer an optional Hot Swap service for mission-critical deployments

Technical overview:

  • SDKs – We supply and have extensive experience in usage of the SDKs for Thales scanners and we can supply sample code to get you running quickly
  • Coding – If you need coding assistance we offer professional services on a daily or weekly basis
  • Alerts – For network and remote deployments we offer optional real-time device status monitoring and alerts using our proprietary Hub Manager
  • Auto Updates – With Hub Manager we also offer remote automated firmware and software updates

Remote management of IDV software and Thales scanners

IDV Pacific’s Hub Manager is a real-time cloud-based SaaS monitoring and software update subscription service to manage fleet deployments of  Thales scanners and kiosks where scanners are integrated.

We monitor scanner current status including:

  • Real-time scanner status messages from enrolled devices
    • Optional alerting of error conditions
    • Remote device status
    • Remote device reset
  • Scanner past 7 days Log Files (Errors only)
  • Activate/Deactivate scanner

Other data available:

  • Scanner Serial Number
  • IP Address
  • Model
  • Company using the scanner
  • Firmware/Driver/SDK Version

Remote configuration:

  • Imaging configuration such as
    • Compression
    • Invisible/IR/UV Configuration
    • Scale
    • RFID
  • Global config/update through Ansible or Software Update

Scanner Enrollment:

  • Retrieve the generated Certificate based on PC Hardware
  • Add Scanner details to the relevant client

Border-control level document interrogation

For more information about technical capabilities request details below

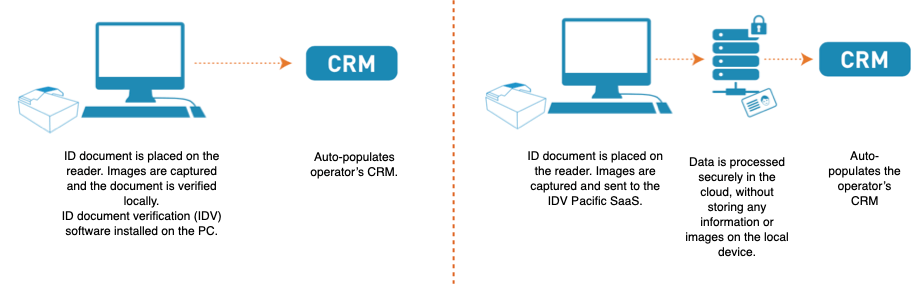

Readers can be operated in either local or SaaS mode

For more information on deployment options request details below

Request Details

√ SDK & APIs Available

Hub Manager

 Professional Services

 Extended Warranty

 Smart Form Builder

Case Studies

Healthcare

PDF

Retail

PDF

Airports

PDF

Banking

PDF

Hospitality

PDF

Cruise Lines

PDF

Quick links to scanner details

  • AT10Ki – Cloud-Ready Intelligent Document Reader

  • AT10K  – New Generation ID Document Reader

  • AT9000 Mk2 – High-End Full Page ID Document Scanner

  • KR9000 – OEM Kiosk Document Reader

  • QS2000 – New Model Entry Level Full Page Document Reader

  • QS1000 – Entry Level Full Page Document Reader

  • CR5400i – Double-sided Intelligent ID Card Reader

  • CR5400 – Double-sided ID Card Reader

  • CR100MSmall footprint MRZ and MSR Swipe Reader

  • CR100Small footprint MRZ Swipe Reader

√ Visible Light Checks

 Infra Red Checks

 Ultra Violet Checks

 Chip Reader

 QR and Barcodes

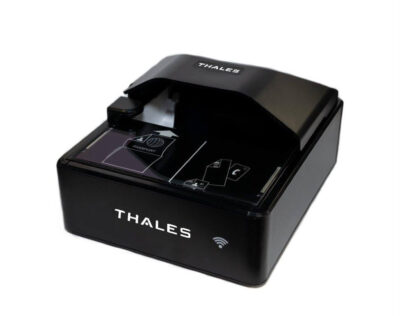

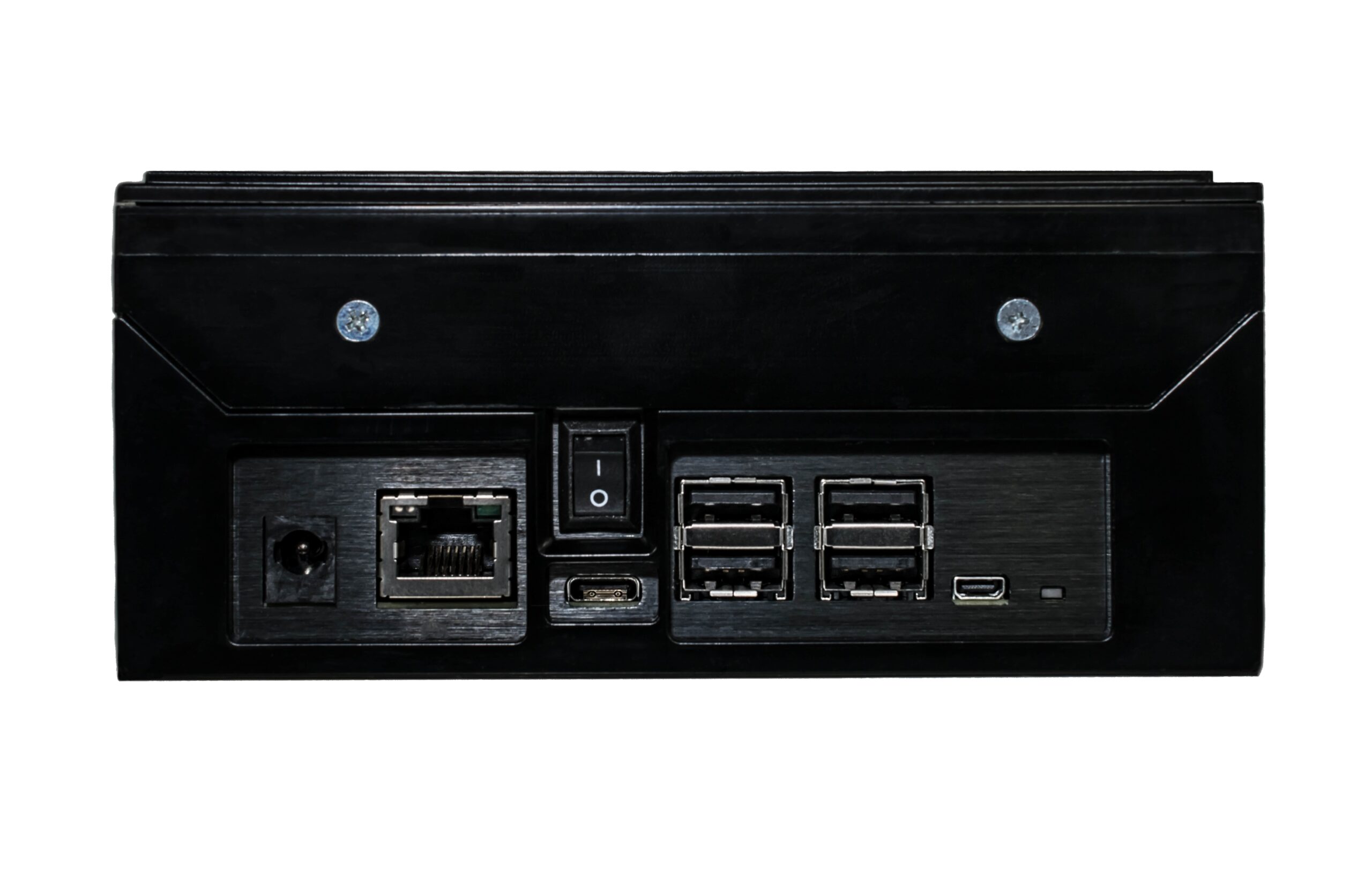

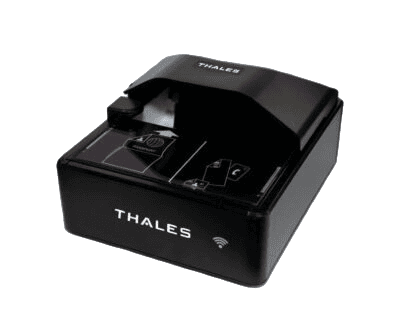

AT10Ki

See the Data Sheet

Cloud-Ready Intelligent Document Reader

The Thales Gemalto AT10Ki Intelligent Document Reader is ideally suited for enhanced connectivity solutions enabling cloud and mobile apps through Wi-Fi and Ethernet for demanding applications where rapid verification of official documents is essential. High-performance on-board processing reduces queuing time, fights fraud, and meets compliance requirements. The result is a document reader which can be deployed in different configurations; standalone or networked operation. This innovation enables the AT10Ki to support a shared reader environment and provide a direct connection to cloud applications with a more flexible authentication of passports, drivers’ licenses, ID cards, visas, and similar credentials.

It is designed for clients that require secure flexible deployment options in addition to demanding environments with direct cloud / mobile connectivity. The AT10Ki is an on-demand device that allows multiple users the ability to share a single reader connected through a Wi-Fi / Ethernet network. Perfect situation for apps that utilise tablets and or smartphones, thereby removing the burden of direct physical connection to a PC or workstation. All delivered with lower annual IT costs and a smaller technology footprint. This technology facilitates large deployments requiring remote management and provisioning.

Ready for the cloud, the Gemalto Intelligent Document Reader AT10Ki uses web-style encrypted JSON messaging to simplify application development, deployment, and maintenance. For the customer, this means:

  • The Gemalto Intelligent Document Reader AT10Ki can connect to any mobile device, phone, or tablet.
  • The reader can be used in pool mode connecting to multiple devices (you can create reader farms)
  • A single computer can connect to multiple readers.
  • Flexible install options
  • Lower development and lifetime IT costs
  • Direct connection with Software as a Service (SaaS) and enterprise back-end applications
  • Remote status monitoring, configuration, management, and firmware updates using IDV’s Hub Manager

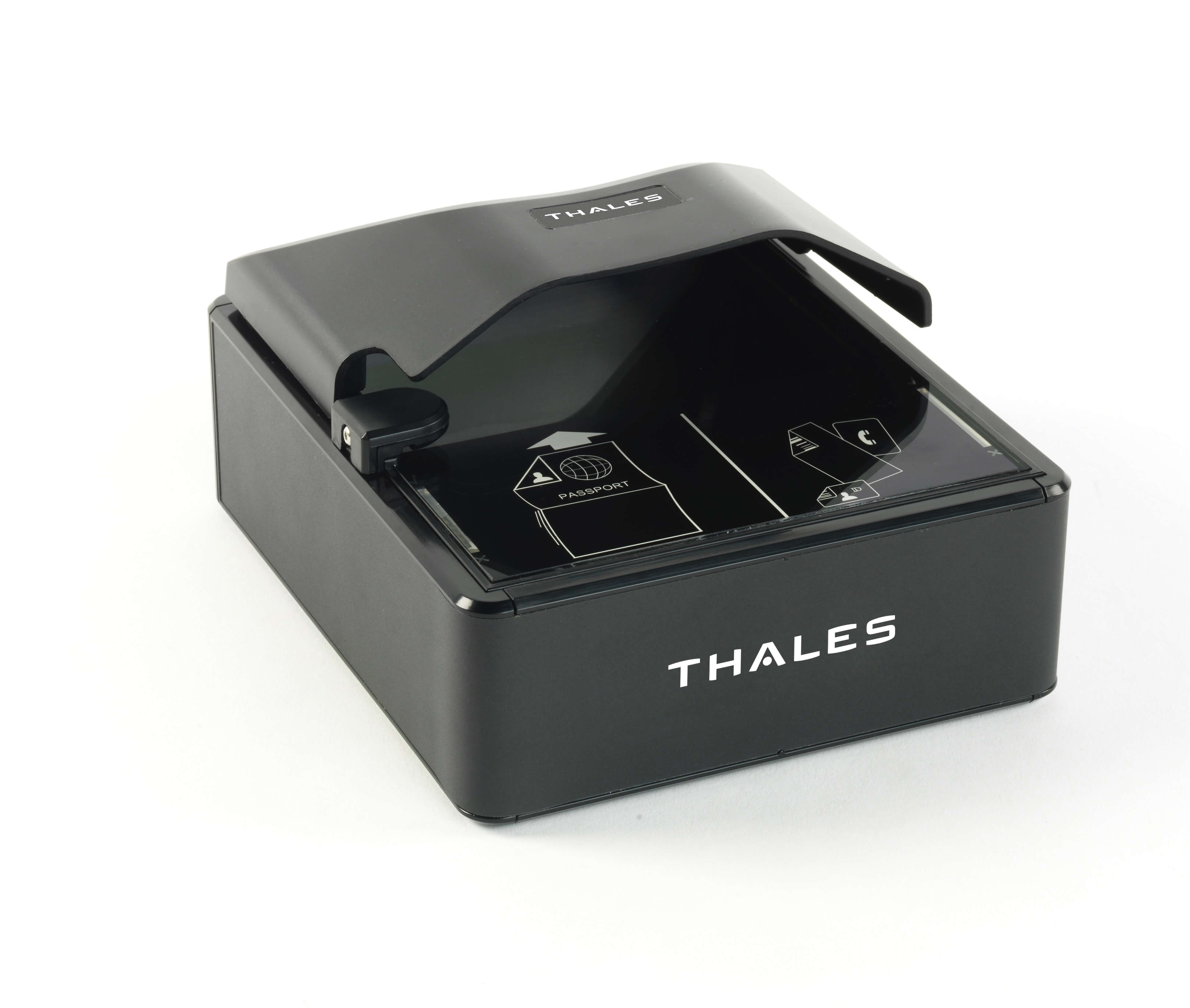

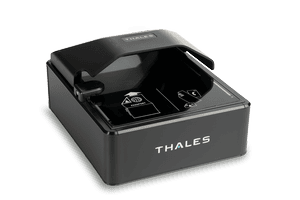

AT10K

See the Data Sheet

New Generation ID Document Reader

The Thales Gemalto AT10K is a small footprint of modern design Document Reader for use in demanding border management scenarios. It also serves banking, hospitality, travel, and any other industries where you need an accurate and reliable document and ID verification and reading.

With an intuitive design based on an exhaustive analysis of real-life scenarios, the Thales AT10K Document Reader includes an LED “landing light” feedback that guides the user to properly place documents regardless if the user is left or right-handed. The lights show a progress bar that informs the user that the reader is processing and when it will finish which is then followed by a clear red cross or green tick indicating the document can be removed. This has been proven to improve first-time read rates especially for infrequent users which reduces frustration and reduces queue times, increasing the reputation of your company.

The reader also features a new document spine hold-down clip that holds down passport books and works on multiple, stapled books.

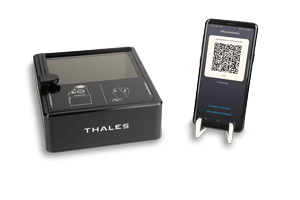

The reader’s document hood is easily removable to allow for cell phone and tablet reading or use with gloved hands

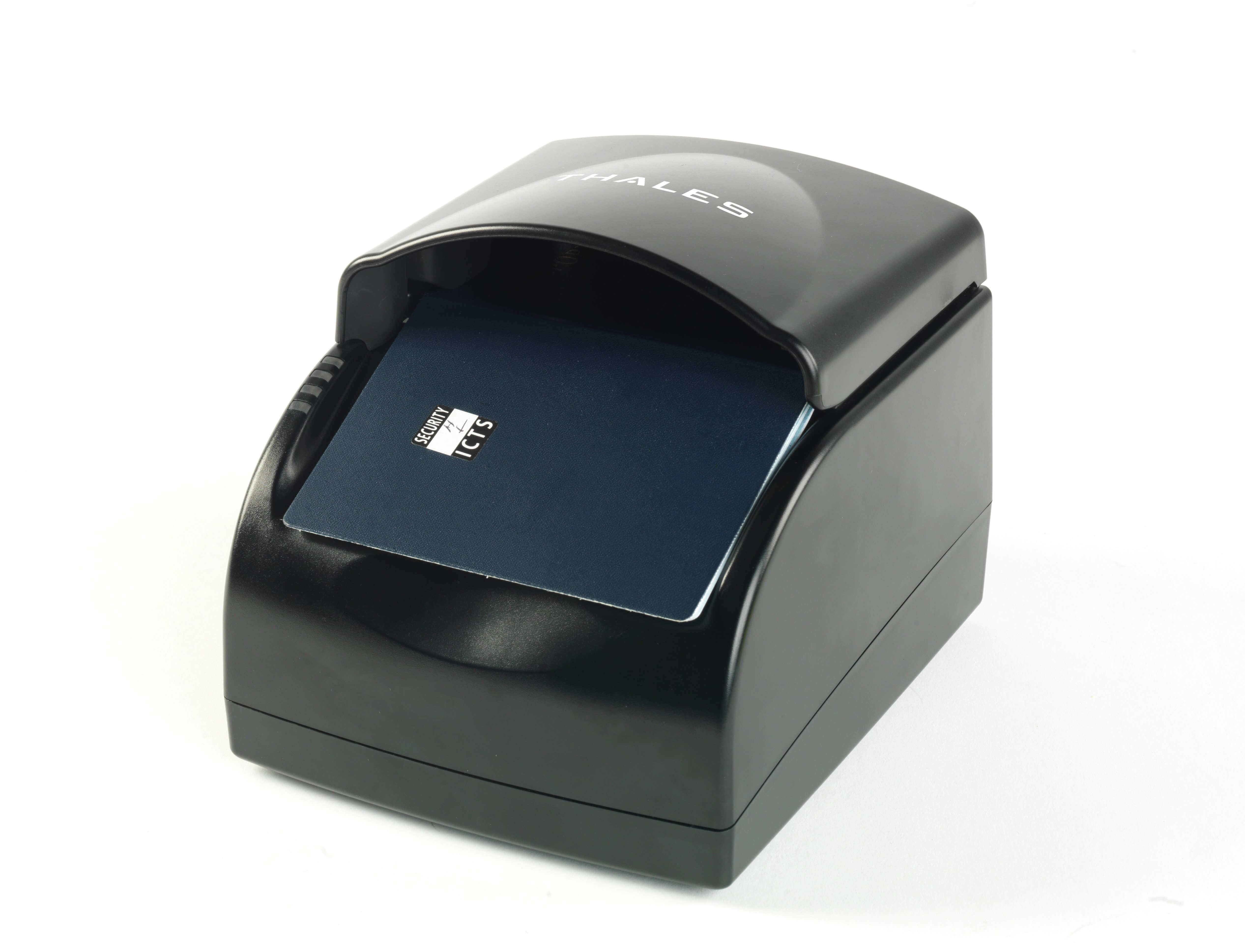

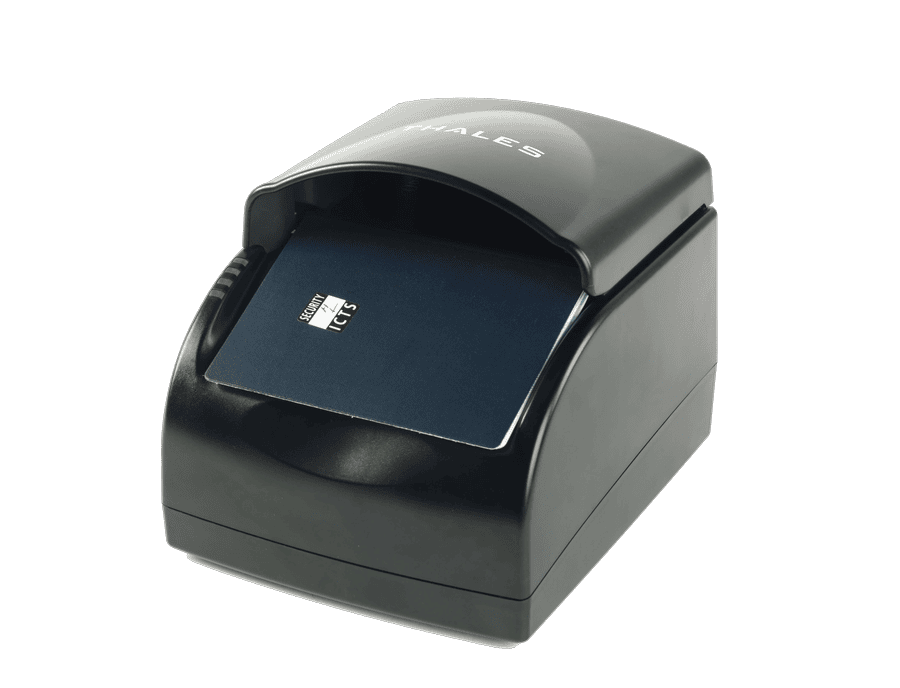

AT9000 Mk2

See the Data Sheet
Brochure

High-End Full Page ID Document Scanner

The Thales Gemalto Document Reader AT9000 MK2 is a reliable and convenient full-page document reader in a compact format. It reads and authenticates multiple document types quickly, efficiently, and accurately.

The AT9000 MK2 reads passports, ePassports (BAC, SAC, EAC, PACE-CAM, AA), ID cards, national IDs, visas, military cac cards and driver’s licenses, 1D and 2D barcodes ((Aztec, DataMatrix, PDF417, QR Code) from printed documents and mobile phones.

The AT9000 MK2 offers maximum flexibility in systems integration and smooth operation and maintenance with:

  • Its software development kit provides a smooth migration to a new reader and includes demos, code samples and utilities.
  • It’s one-step scanning with automatic document detection
  • It’s “Active video” document detection system that reads in virtually any orientation or angle.
  • Anti-glare, true colour, hoodless operation
  • USB only power

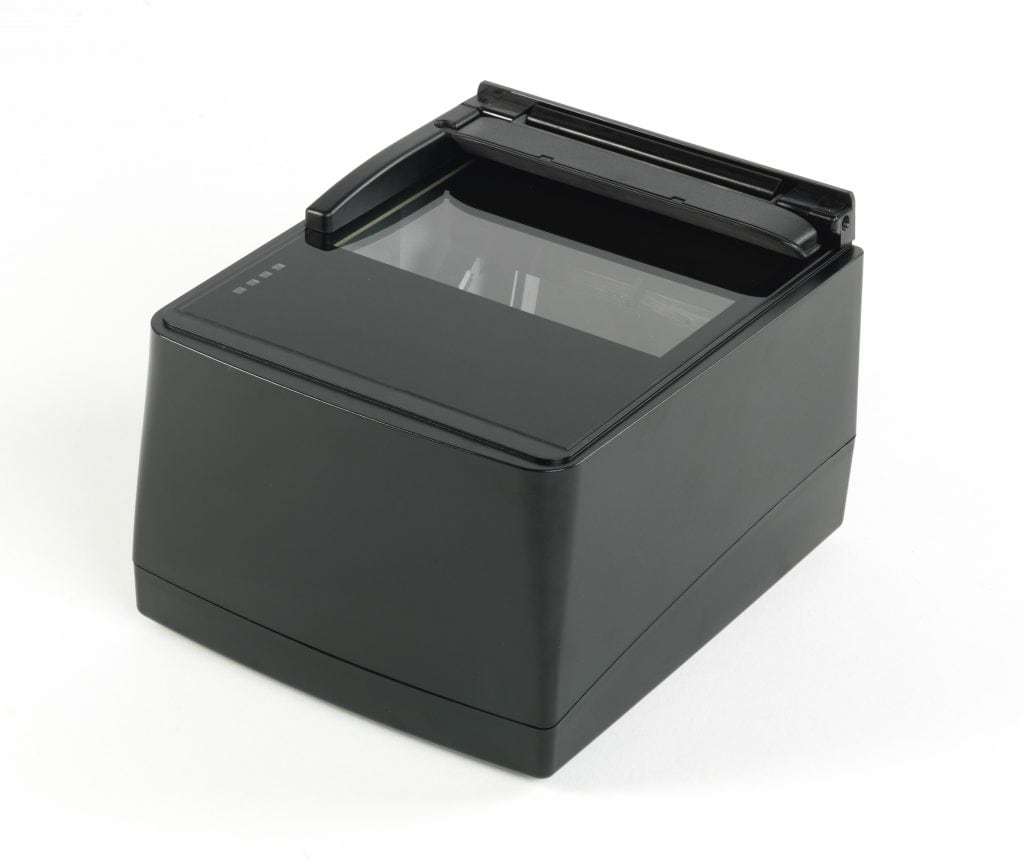

KR9000

See the Data Sheet

OEM Kiosk Document Reader

The Thales Gemalto OEM KR9000 Document Reader is used to inspect and image travel documents, including electronic travel documents and 1D and 2D barcodes. The reader’s low profile and simple shape make it compatible with self-service kiosks, counters, and eGates at airports terminals.

The flat top makes document and cell phone placement very easy for untrained users in a self-service environment.

Functions include:

  • Optional support for biometrically enabled travel documents
  • containing contactless integrated circuit chips (eIDs and ePassports)
  • Optical document analysis in border management commercial markets
  • Accurate, true-color images with patent-pending anti-document laminate reflections and ambient light interference.

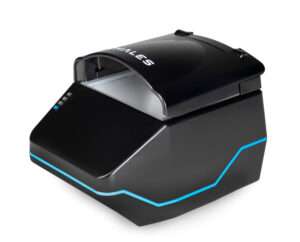

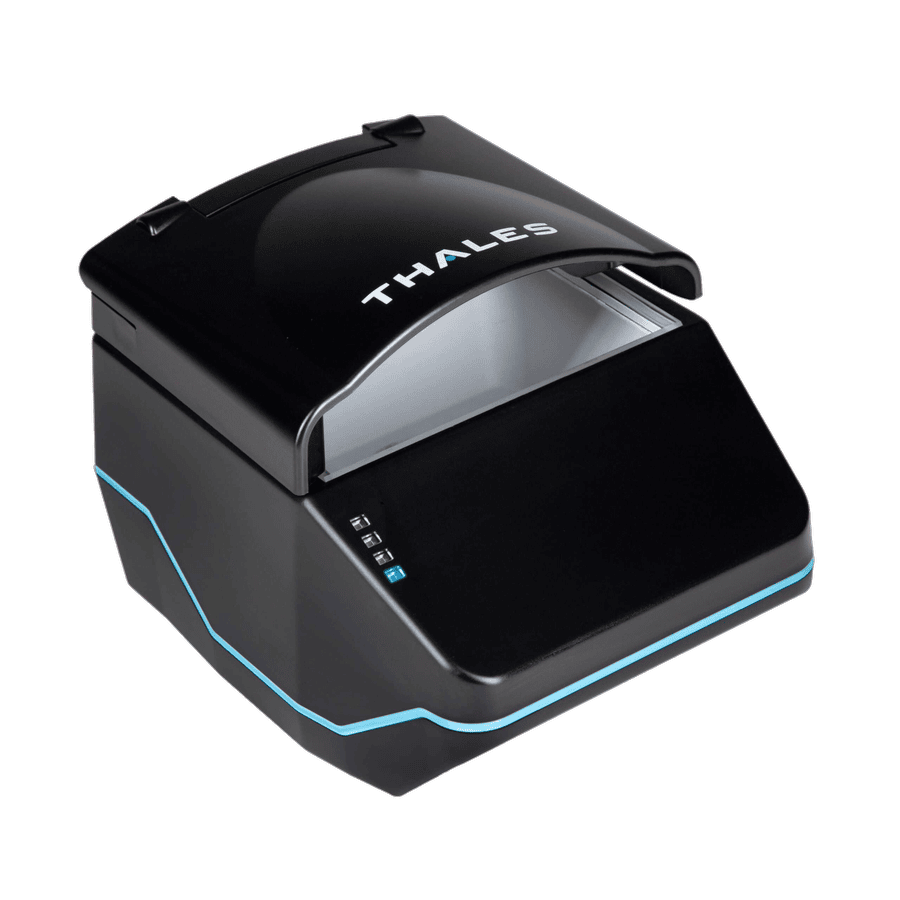

QS2000

**Available December**

Order now

Contact for details

See the Data Sheet

New Model Entry Level Full Page Document Reader with RFID Option

Thales Gemalto Document Reader QS2000 is a full-page document reader designed with the commercial market in mind.  The reader provides user with fast data capturing making it ideal for commercial applications. It offers visible imaging, and carries an IP50 rating for dust protection.  Optional eID RFID chip reading provides high quality face images and additional assurance the document is genuine. SDK options include AssureTec™ data capture, Oracle Opera PMS interface, visible zone, Chinese NID RFID reading and Asian OCR. The Gemalto Document Reader QS2000 offers visible and infrared imaging, and reads 1D and 2D barcodes from driver’s licenses. It meets the requirements in providing a better guest experience while capturing data for clients in the hospitality, visitor management and many more commercial sectors.

Key standard features:

  • Fast and accurate data capture
  • Convenient 1D and 2D barcode reading
  • Active video allows reading from various document orientations

Major features:

  • Multiple document reading and imaging capability – imaging using true-color image matching
  • 350-370 DPI high resolution imaging
  • Scanning window 125 mm x 90 mm
  • Illumination – visible
  • Optional ISO14443 and ICAO 9303 eDocument RFID chip reading
  • OCR data capture
  • Complete access to OCR data and images captured via Software Development Kit (SDK)
  • Enables images to be accessed as BMP, PNG or JPEG format
  • Auto-triggering of document capture – presence of document is automatically detected
  • USB 2.0 or USB 3 high speed compatible
  • No moving parts and comes with an IP50 rating for dust ingress protection

QS1000

See the Data Sheet

Entry Level Full Page Document Reader

The Thales Gemalto Document Reader QS1000 is designed for the commercial market.  Compact and providing fast data capture make it ideal for commercial applications. The QS1000 offers visible and infrared imaging and carries an IP50 rating for dust protection.  SDK options include AssureTec™ data capture, MICROS® OPERA (now Oracle Opera PMS) interface, visible zone, and Asian OCR. The QS1000 inspects and images Machine Readable Travel Documents (MRTDs) in a variety of market segments. This includes applications that are primarily focused on data capture opportunities in hotels, casinos, liquor stores, bars, and rental car companies.

Details of the QS1000 and key standard features:

  • Fast and accurate data capture when there is no need to check if the document is genuine and not manipulated
  • Convenient 2D barcode reading from cell phones
  • Active video allows reading from various document orientations

Major features:

  • Multiple document reading and imaging capability – imaging in 24-bit color
  • 400 DPI high-resolution imaging
  • Scanning window 88mm x 125mm
  • Multiple wavelength illumination – visible and IR
  • OCR data capture
  • Complete access to OCR data and images captured via Software Development Kit (SDK)
  • Enables images to be accessed in BMP, PNG, or JPEG format
  • Auto-triggering of document capture – the presence of the document is automatically detected
  • USB 2.0 high speed compatible

No moving parts and comes with an IP50 rating for dust ingress protection

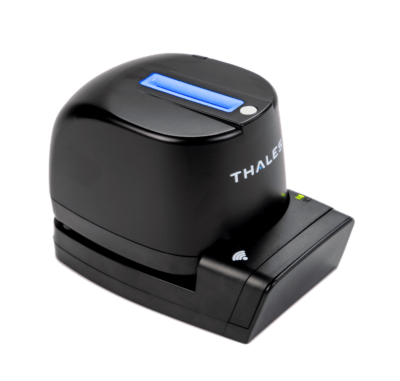

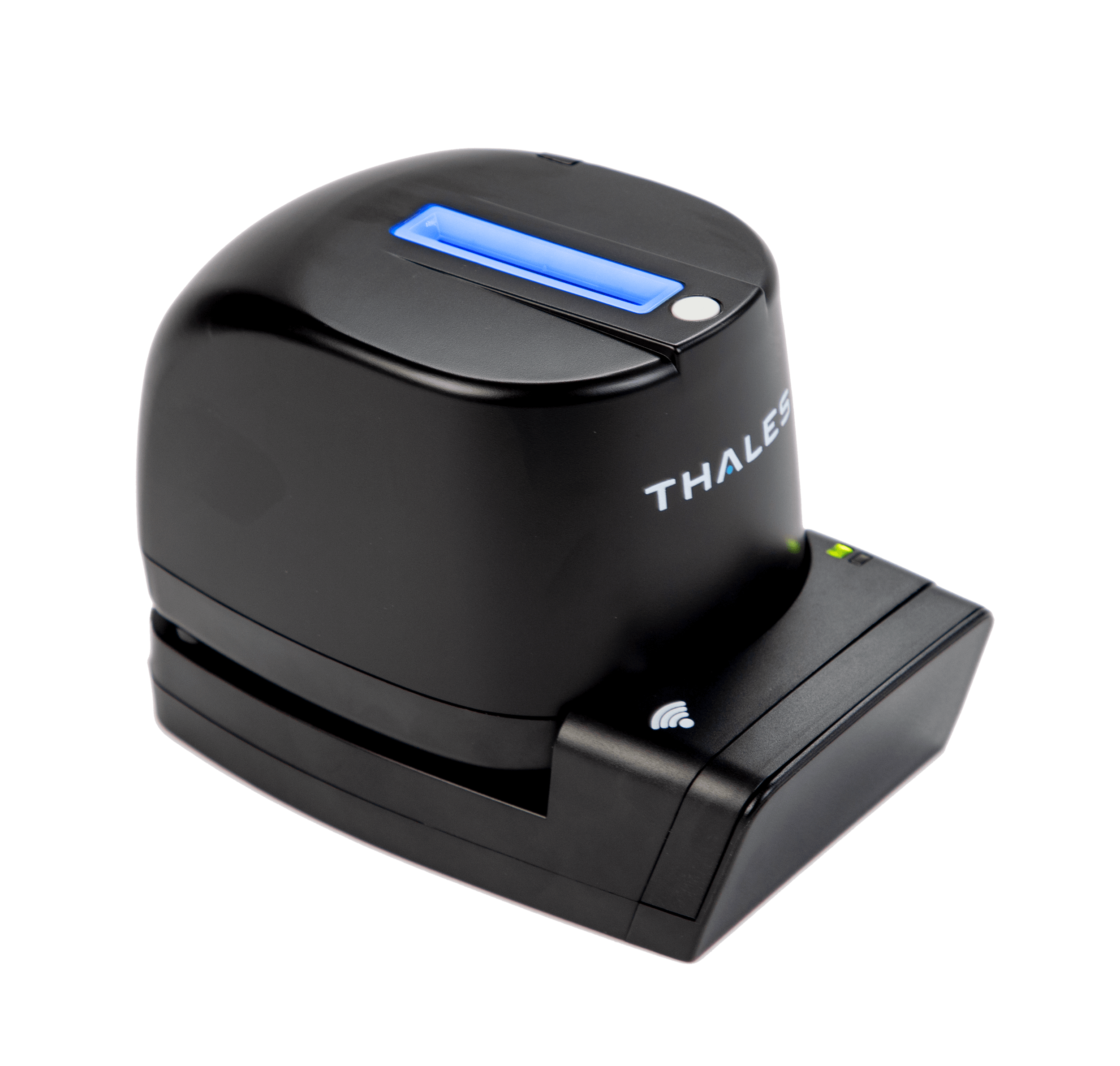

CR5400i

See the Data Sheet

Double-sided Intelligent ID Card Reader

Easy to use and designed with the operator in mind, Thales Gemalto Double-Sided ID Card Reader CR5400i is an on-demand device which provides users flexible deployment options with direct SaaS connectivity.  Using the intelligent reader is as easy as 1, 2, 3. Step 1. Simply drop the ID card into the reader, no wrong way of inserting the ID into the reader. Step 2. It simultaneously reads both sides of the ID. Step 3. Once read is complete, LED lights go from blue to green and ID is ejected and returned to its owner providing a better customer experience while capturing and authenticating scanned data.

Provides accurate data capture and form filling for a wide range of environments such as:

  • Banking
  • Retail
  • Visitor Management
  • And more

Ready for the cloud, the Gemalto Intelligent Document Reader CR5400i uses web-style encrypted JSON messaging to simplify application development, deployment, and maintenance. For the customer, this means:

  • The Gemalto Intelligent Document Reader AT10Ki can connect to any mobile device, phone, or tablet.
  • The reader can be used in pool mode connecting to multiple devices (you can create reader farms)
  • A single computer can connect to multiple readers.
  • Flexible install options
  • Lower development and lifetime IT costs
  • Direct connection with Software as a Service (SaaS) and enterprise back-end applications
  • Remote status monitoring, configuration, management, and firmware updates using IDV’s Hub Manager

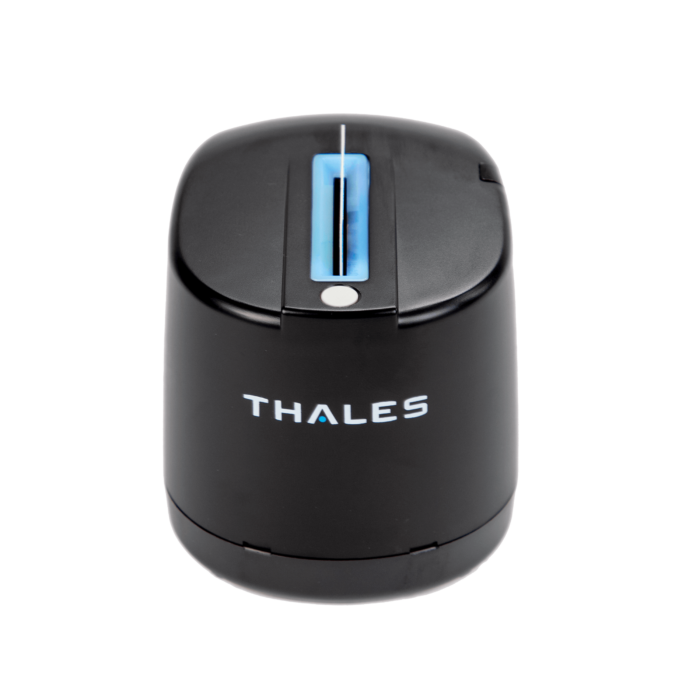

CR5400

See the Data Sheet
Brochure

Double-sided ID Card Reader

The Thales Gemalto CR5400 Double-Sided ID Card Reader simultaneously reads both sides of an ID card quickly. It is an easy way to improve accuracy, automate authentication, reduce human error, and maximise privacy. With the Thales Double-sided ID card Reader CR5400 there is no wrong way when inserting an ID card.

CR5400 checks IDs in double-time, reading both the front and back simultaneously. There’s no wrong way to insert the card into the reader – all you need to do is drop it in. Color-coded LED lights provide a real-time status response, and it automatically ejects the card once it has after reading.

Thales has designed the CR5400 with Banks & Financial Institutions, Border Management, Hospitals, Care Facilities & Pharmacies, Hotels & Casinos, Retail Stores, Schools, and Universities in mind.

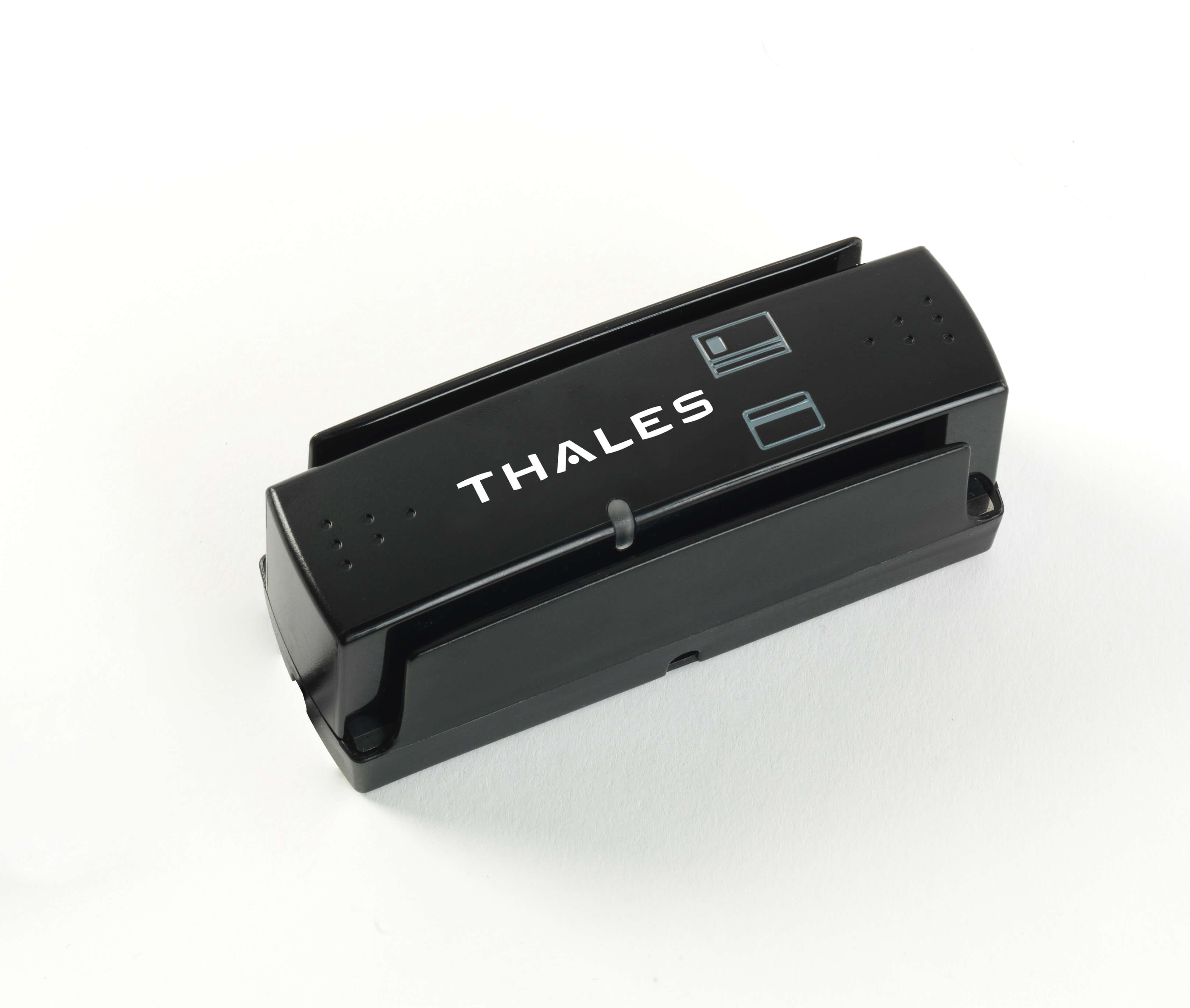

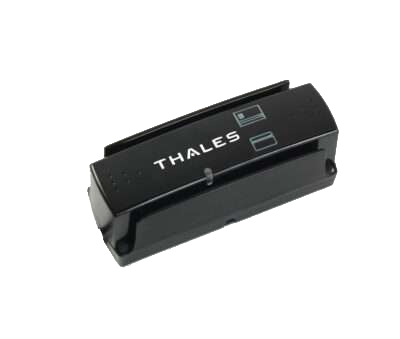

CR100M

See the Data Sheet
Brochure

Small footprint MRZ and MSR Swipe Reader

The Thales Gemalto MRZ and MSR Swipe Reader CR100M is an efficient and easy-to-use reader in a small footprint.

The MRZ and MSR Swipe Reader CR100M offers:

  • The ability to read codeline data from passports, IDs, and other Machine Readable Travel Documents (MRTDs)
  • The ability to read three-track magnetic cards
  • The simple hand-swipe operation, requiring minimal operator training
  • Fast, accurate data capture
  • A small footprint; can be integrated into small bank counter or cash desk environments

It is designed and used in Banks & Financial Institutions, Border Management, Hospitals, Care Facilities & Pharmacies, Hotels & Casinos, Retail Stores, Schools, and Universities.

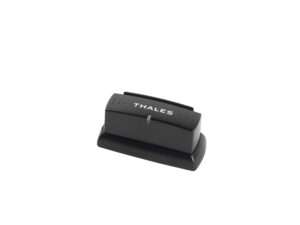

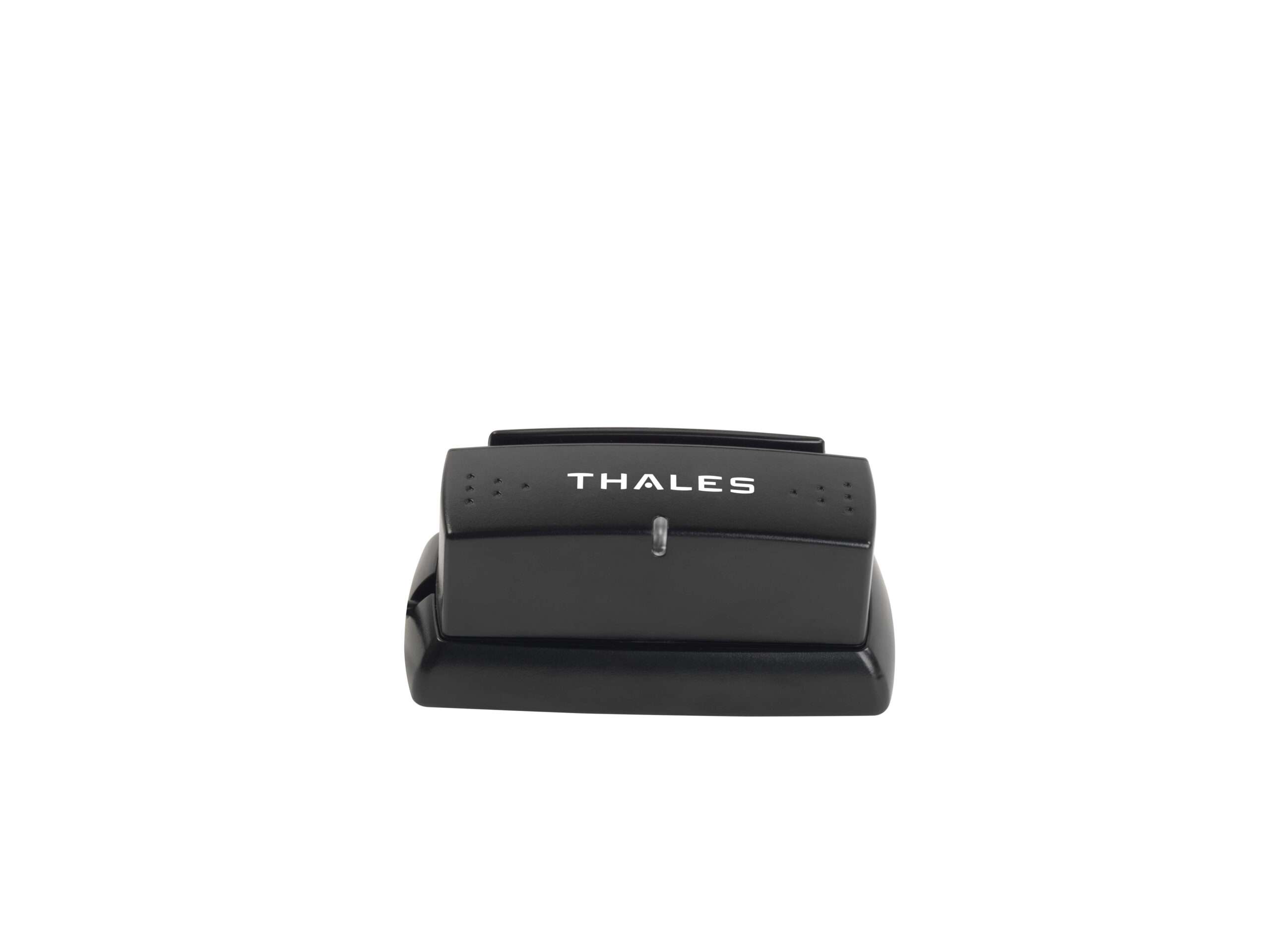

CR100

See the Data Sheet
Brochure

Small footprint MRZ Swipe Reader

As a compact card reader, Thales Gemalto MRZ Swipe Reader CR100 offers the ability to read 1, 2 and 3 line data from passports, IDs and other Machine Readable Travel Documents (MRTDs) with simple hand-swipe operation and requiring minimal training.

Efficient and easy-to-use readers in a small footprint, it can be attached to a cash register, display, or keyboard meaning it can be integrated into small bank counter or cash desk environments, making it ideal for banking, car rental agencies, hotels, and retail as well as Border Management, Law Enforcement, and Transportation.

√ Visible Light Checks

 Infra Red Checks

 Ultra Violet Checks

 Chip Reader

 QR and Barcodes
