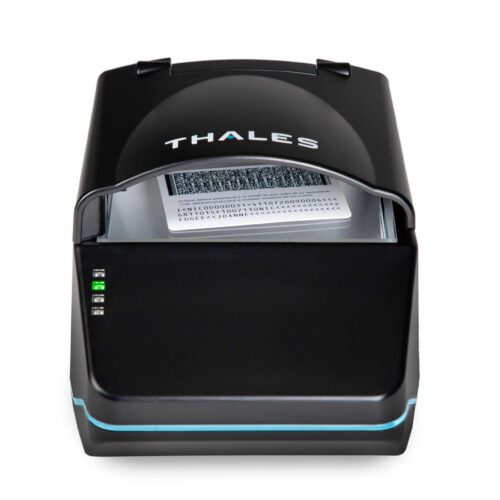

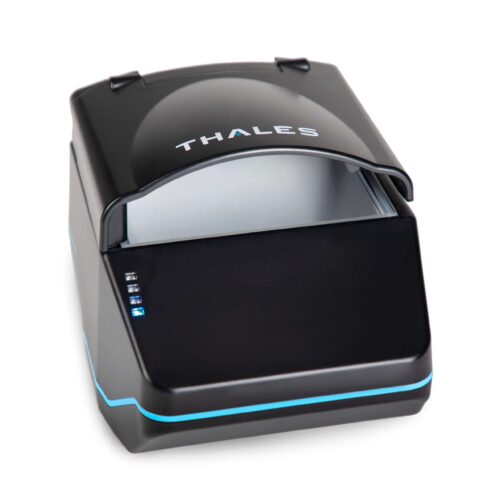

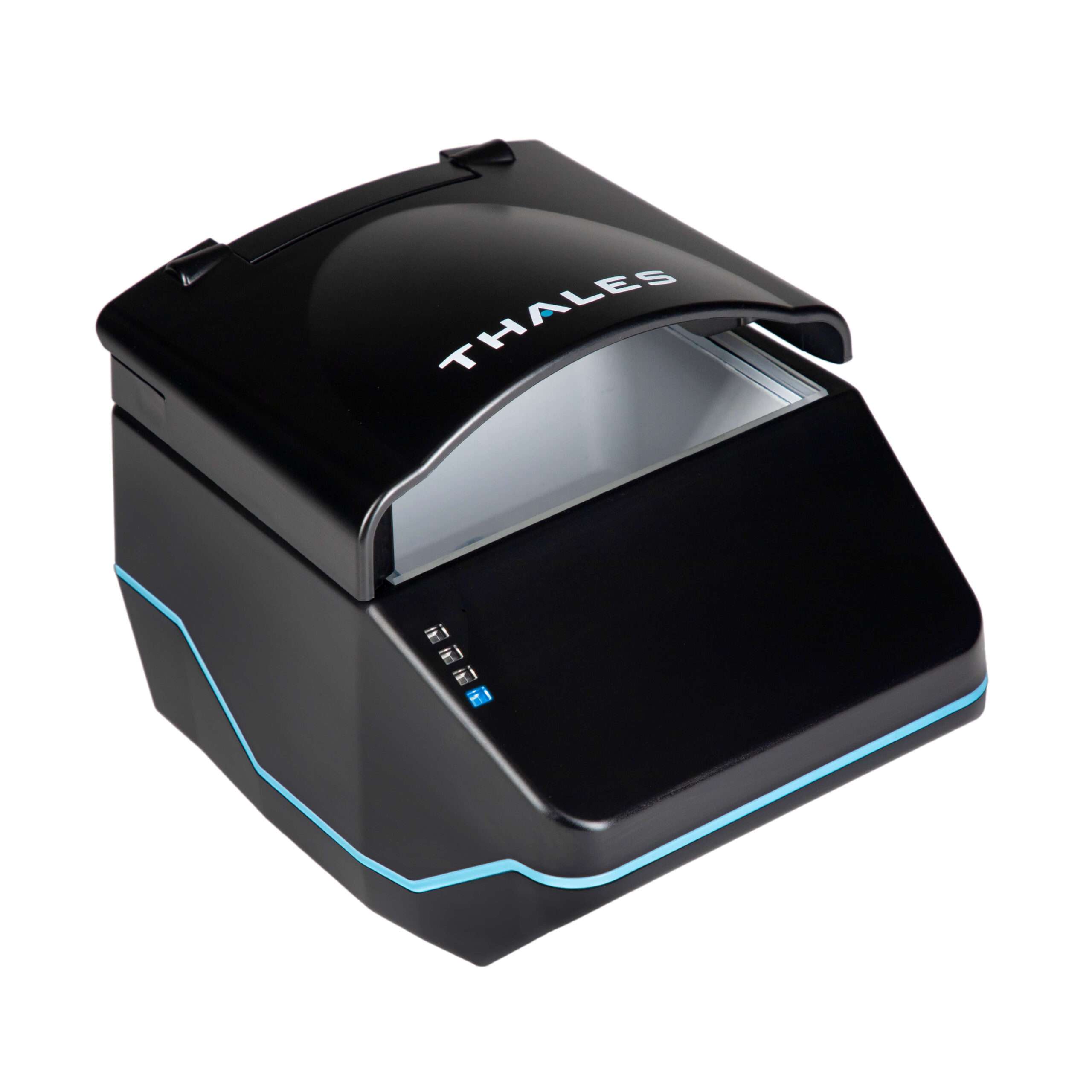

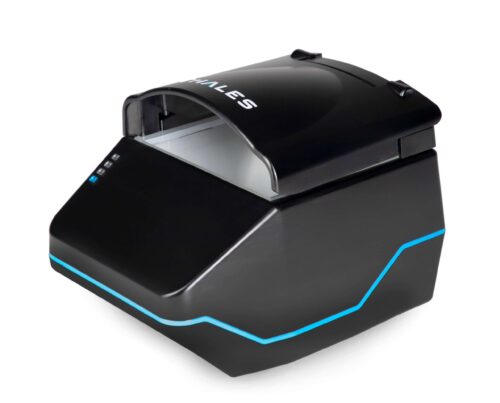

QS2000 Full Page Reader

$811.37 excl. GST

2 in stock (can be backordered)

The QS2000 is a robust full-page document reader designed for fast data entry from travel documents and ID documents

2 in stock (can be backordered)

2 Years Warranty Standard
SDK and Sample Code available
30 Days Money Back Guarantee

(Warranty selection applies to total quantity)
  • Extended Warranty Price: $0.00
SKU: XSPV5500000000 Categories: ,

Description





New Model Entry Level Full Page Document Reader with RFID Option

Thales Gemalto Document Reader QS2000 is a full-page document reader designed with the commercial market in mind.  The reader provides users with fast data capturing making it ideal for commercial applications. It offers visible imaging and carries an IP50 rating for dust protection.  Optional eID RFID chip reading provides high-quality face images and additional assurance the document is genuine. SDK options include AssureTec™ data capture, Oracle Opera PMS interface, visible zone, Chinese NID RFID reading, and Asian OCR. The Gemalto Document Reader QS2000 offers visible and infrared imaging and reads 1D and 2D barcodes from drivers’ licenses. It meets the requirements in providing a better guest experience while capturing data for clients in the hospitality, visitor management, and many more commercial sectors.

Key standard features:

  • Fast and accurate data capture
  • Convenient 1D and 2D barcode reading
  • Active video allows reading from various document orientations

Major features:

  • Multiple document reading and imaging capability imaging using true-color image matching
  • 350-370 DPI high-resolution imaging
  • Scanning window 125 mm x 90 mm
  • Illumination  visible
  • Optional ISO14443 and ICAO 9303 eDocument RFID chip reading
  • OCR data capture
  • Complete access to OCR data and images captured via Software Development Kit (SDK)
  • Enables images to be accessed in BMP, PNG, or JPEG format
  • Auto-triggering of document capture  presence of document is automatically detected
  • USB 2.0 or USB 3 high speed compatible
  • No moving parts and comes with an IP50 rating for dust ingress protection

Additional information

Document Type

, , , ,

Form Factor

Reader Technology

,

Light Source

Connectivity

Features

QS2000

Standard Features:

  • Multiple document reading and imaging using true-color image matching
  • Dual-wavelength illumination – Visible and Infra-Red
  • Anywhere placement of ID cards
  • 400 DPI -resolution
  • OCR data capture of the Machine Readable Zone (MRZ)
  • Complete access to data and images captured via Software Development Kit (SDK)
  • Auto-triggering of document capture – presence of document is automatically detected using visible light
  • Windows® 7, Windows® 8.1, Windows® 10, Windows® 11, macOS and Linux® compatible
  • USB 2.0 or USB 3 high speed compatible via high-speed USB 3.2 Gen 1 Type-C™ host port
  • Rugged design, no moving parts, and internally sealed optical chamber to prevent dust ingress
  • Chemically Strengthened Glass minimises scratching and provides advanced durability
  • Powered from a single USB 500mA port

Data Sheet

View Data Sheet
